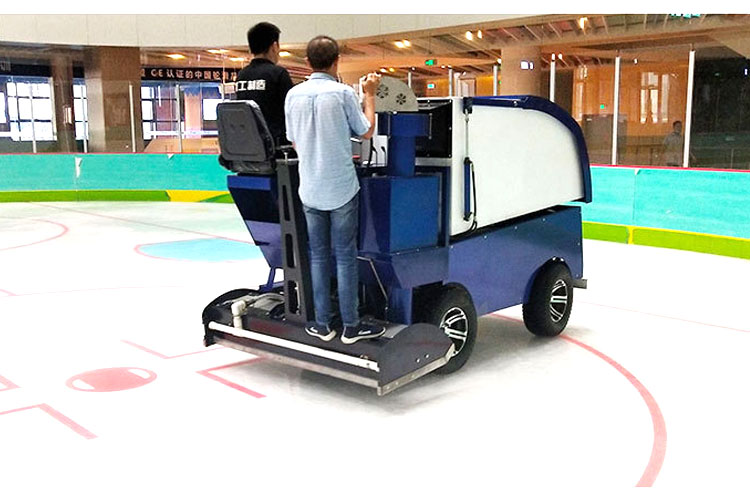

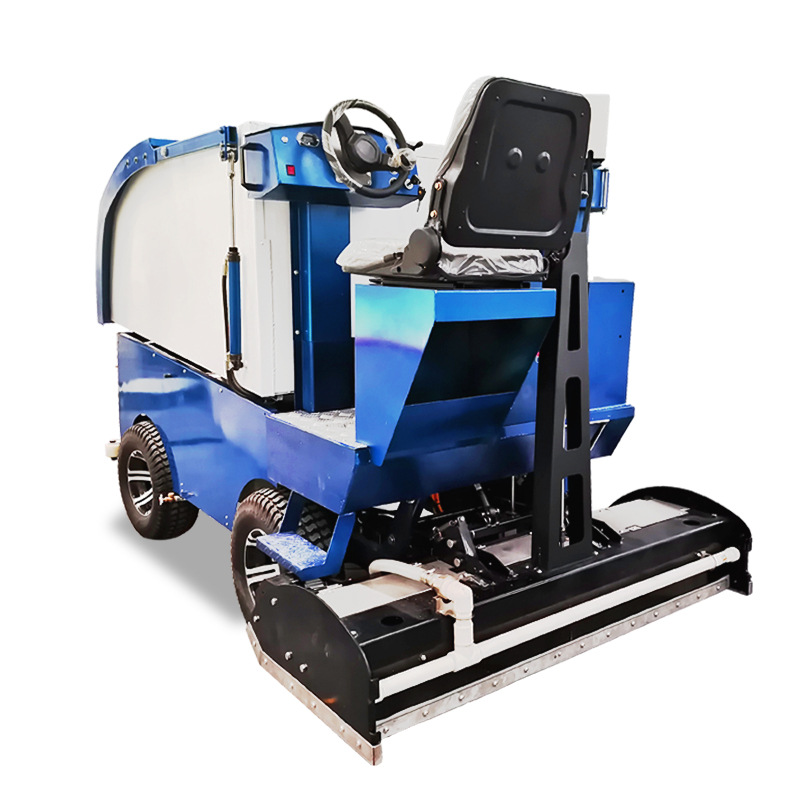

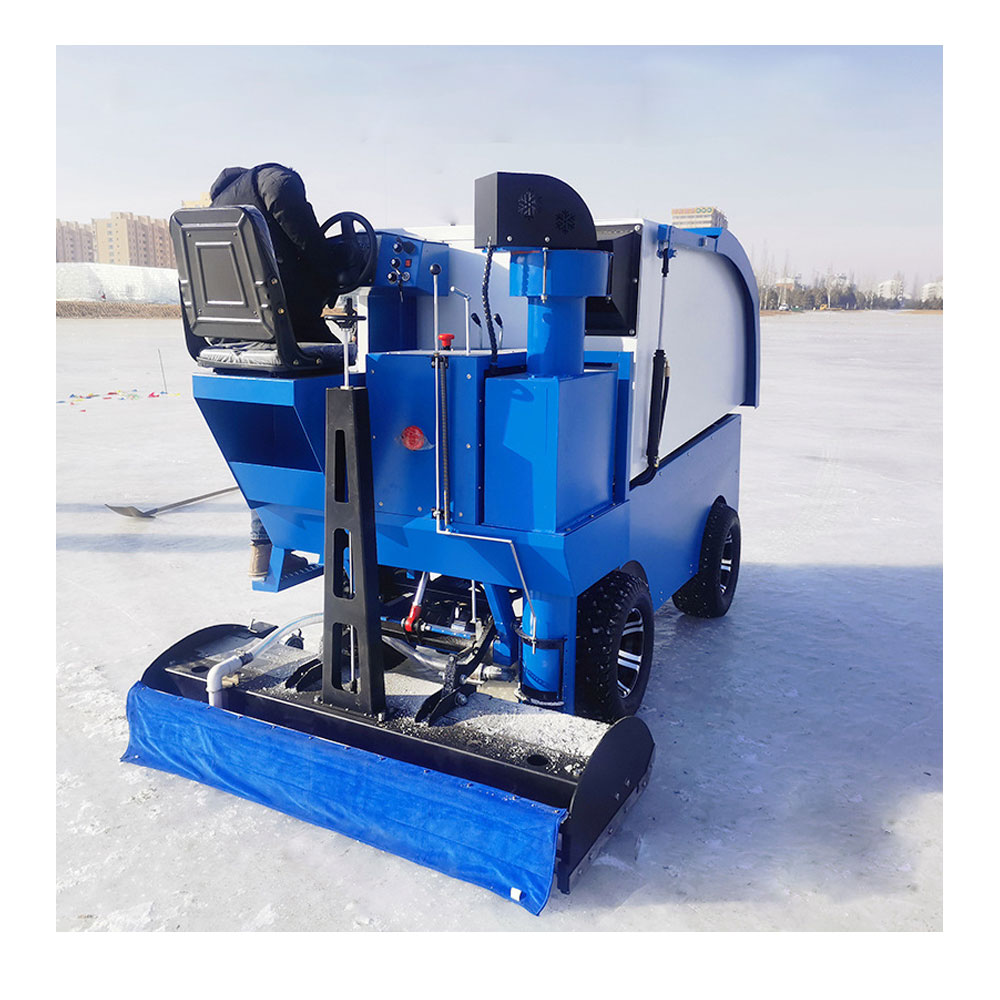

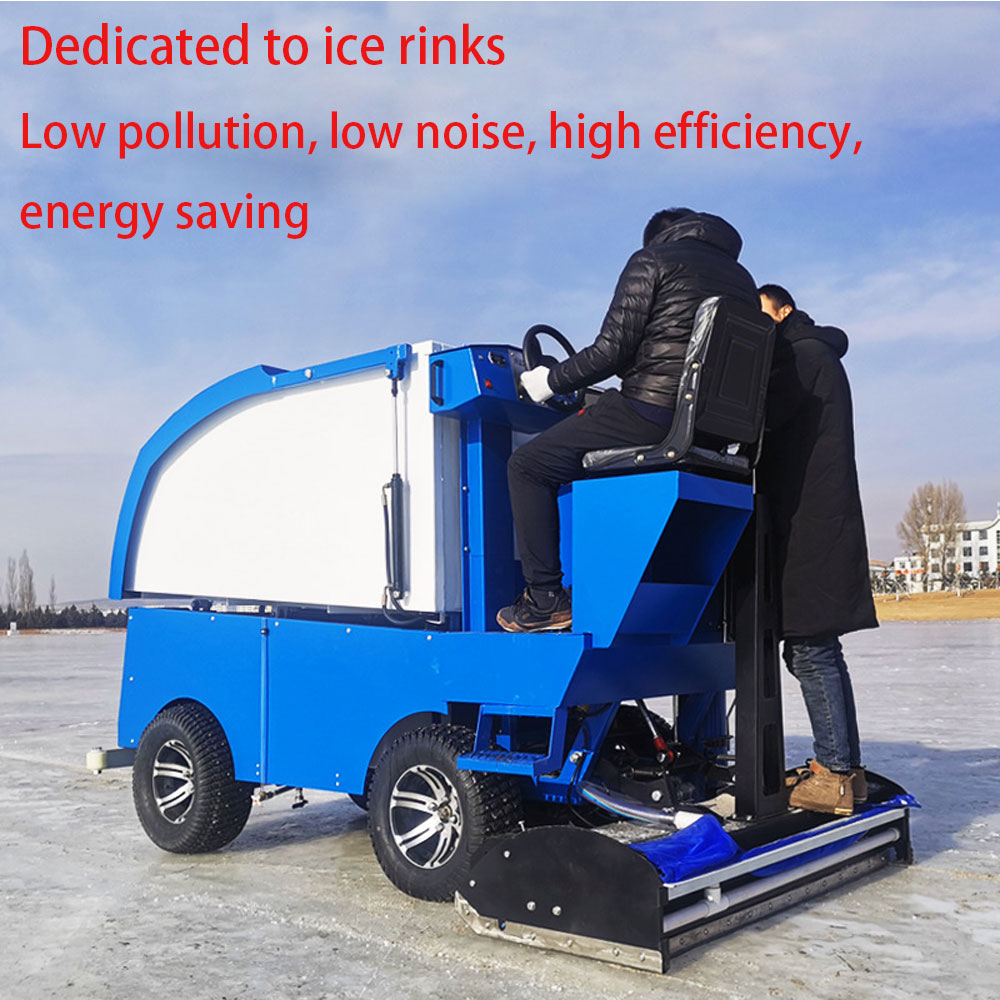

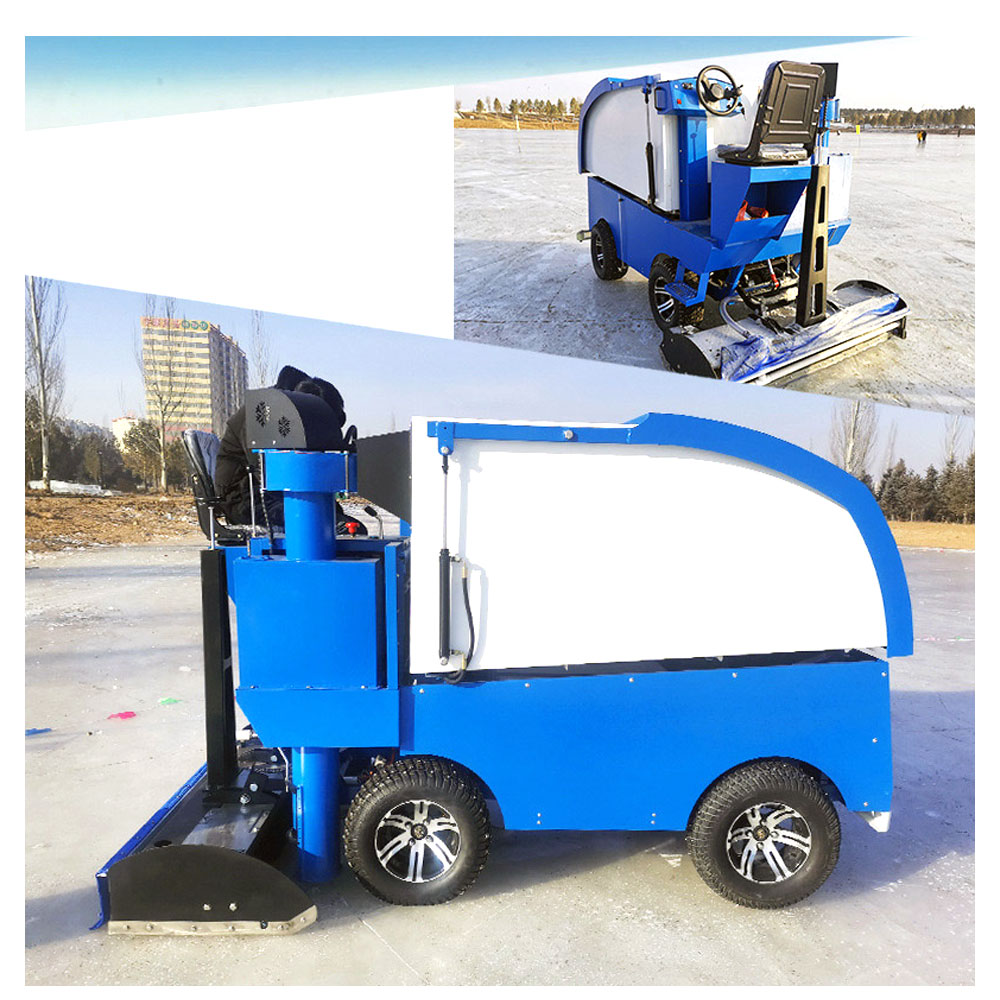

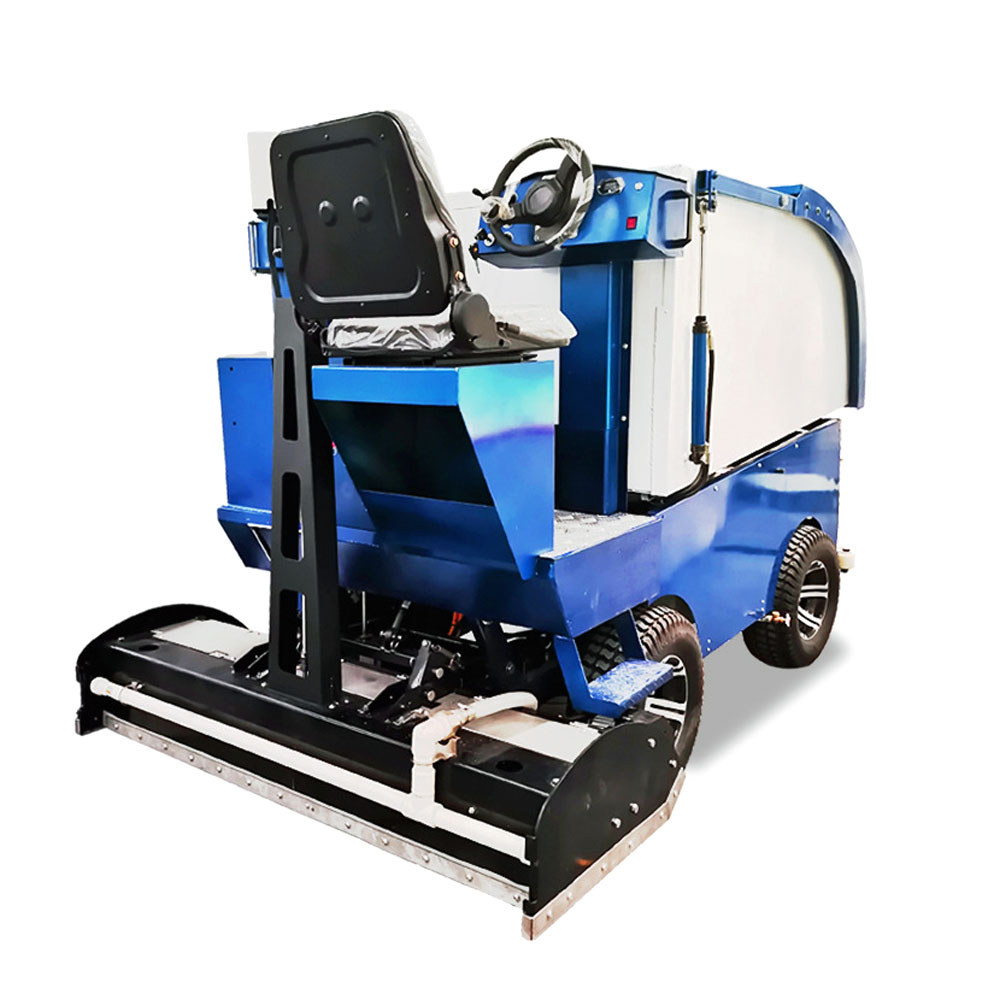

DZC-1700 Ice Resurfacer Specifications

1. General Dimensions

- Length (Static): 2930 mm (3330 mm with dump lid open)
- Width (Vehicle Body): 1200 mm
- Width (Blade Holder): 1600 mm
- Height (Ice Bin Down): 1898 mm
- Height (Ice Bin Up): 2722 mm

2. Drive System

- Wheelbase: 1393 mm
- Track Width: 1059 mm
- Tires:
  - 4-hole aluminum alloy rims (diagonal hole spacing: 101.6 mm)
  - Tire size: 23×8.5-12, 6-layer steel wire
  - Embedded alloy snow studs
  - Load capacity: 650 kg per wheel
- Axles:
  - Front: Hydraulic push-rod linked steering
  - Rear: Integrated motor differential with direct drive
  - Rear axle: Hydraulic drum brakes
  - No shock absorber system

3. Motion & Control

- Control Type: Electronic accelerator pedal
- Speed:
  - Low-speed operation
  - Maximum speed: 20 km/h
- Transmission: Electronically controlled forward/reverse

4. Weight

- Curb Weight: 1050 kg
- Fully Loaded Weight: 1395 kg

5. Water & Ice Management

- Ice Collection Bin Capacity: 1.35 cubic meters
- Water Tank Capacity: 375 liters

6. Power System

- Hydraulic Unit: Integrated system (oil circuit block + pump + tank), easy maintenance
- Hydraulic Motor: 48V 1.5 kW brushless motor
- Battery:
  - 48V battery system with distilled water maintenance
  - 8 × 6V 240Ah batteries (each 40 kg)
- Drive Motor: 48V 4.5 kW high-power DC brushless motor

7. Blade & Build

- Blade: Special high-hardness chrome-plated alloy steel blade, 1530 mm length
- Headlights: Wide-voltage LED high/low beam headlights
- Body: Heavy-duty steel plates with electrostatic powder coating and partial stainless steel parts

8. Key Features

1. Integrated capabilities for ice shaving, water spraying, and ice chip collection.
2. Fully electric vehicle with powerful motor and hydraulic system powered by 6V 240Ah batteries.
3. Dimensions: 2930 mm (L) × 1600 mm (W) × 1898 mm (H)
