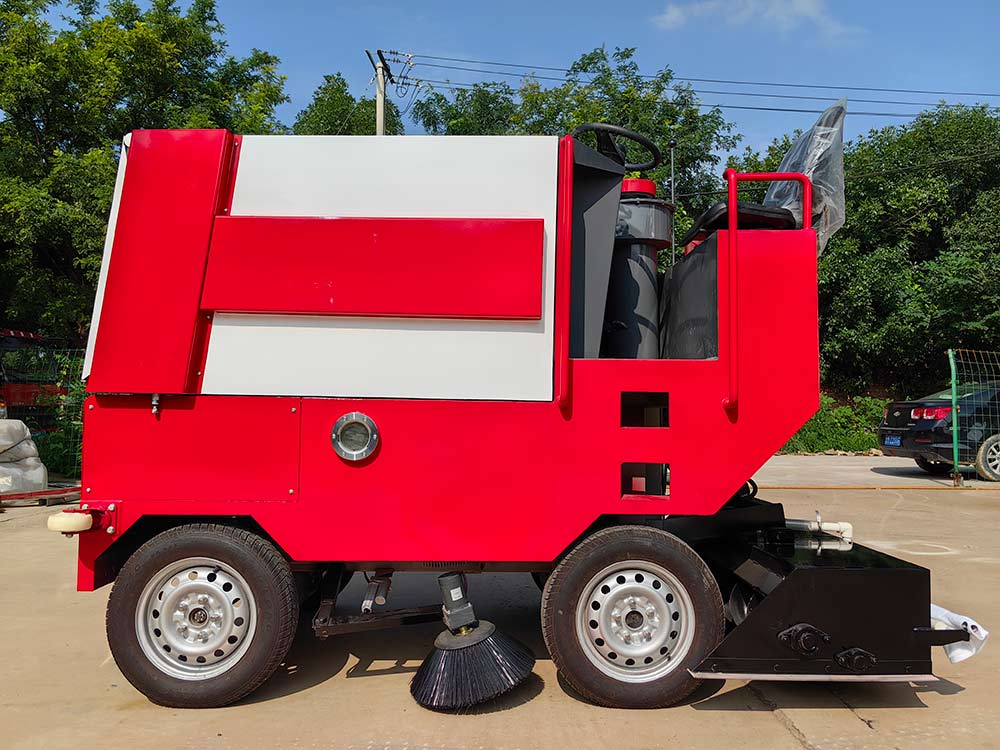

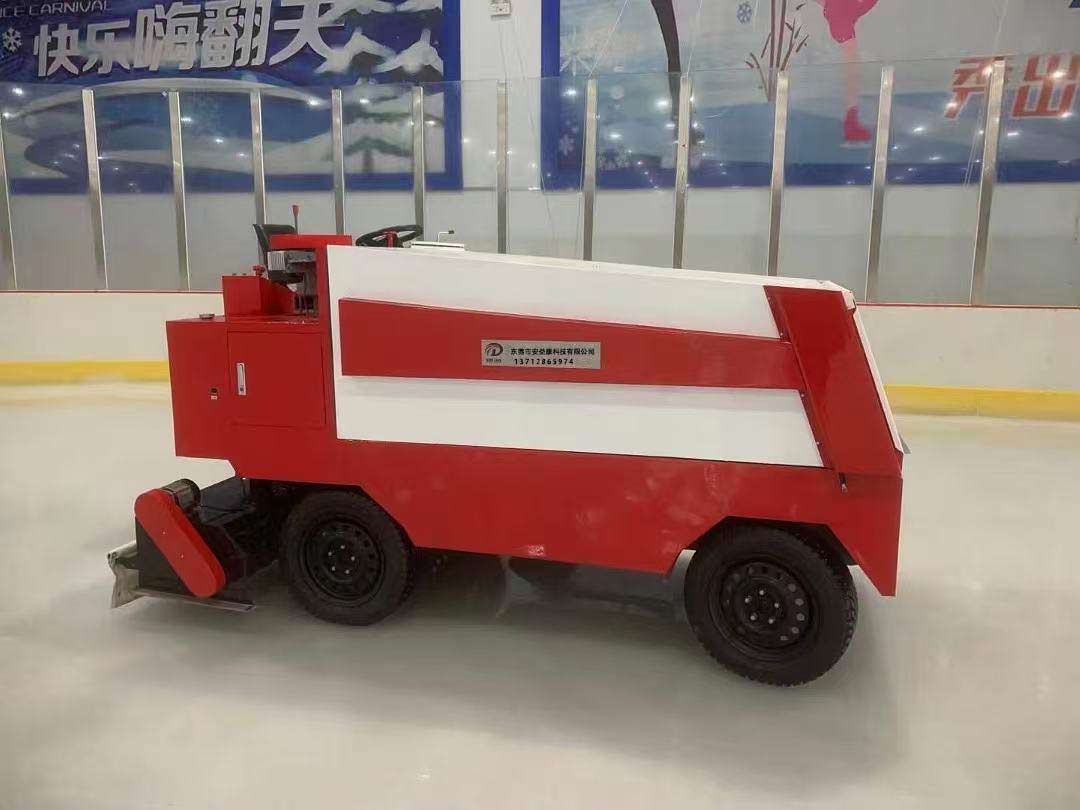

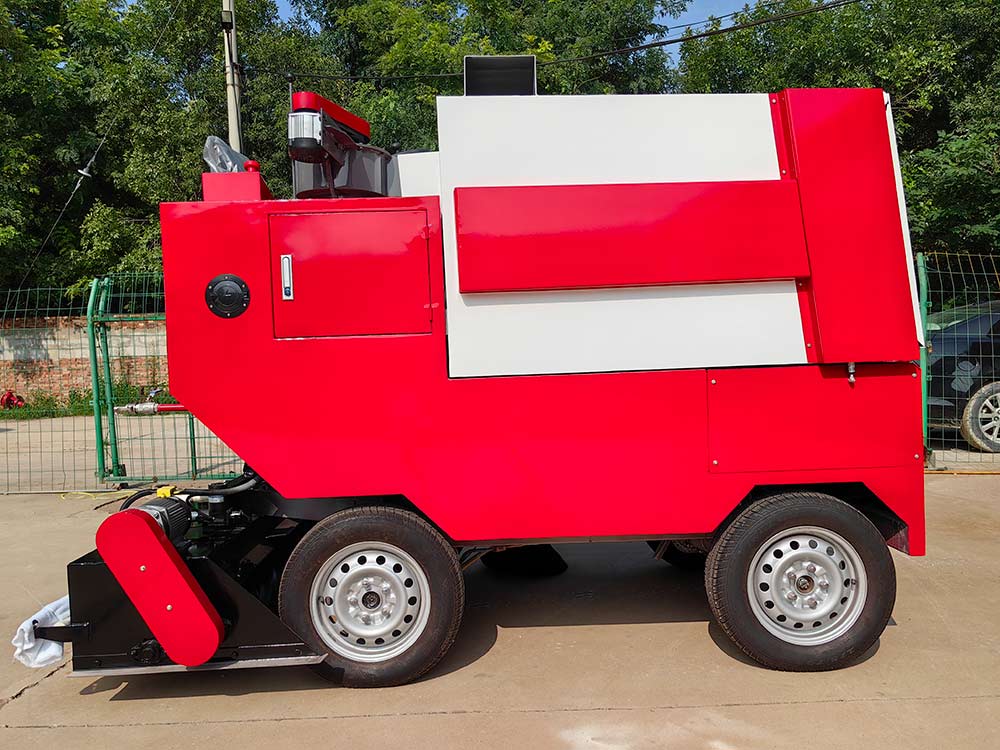

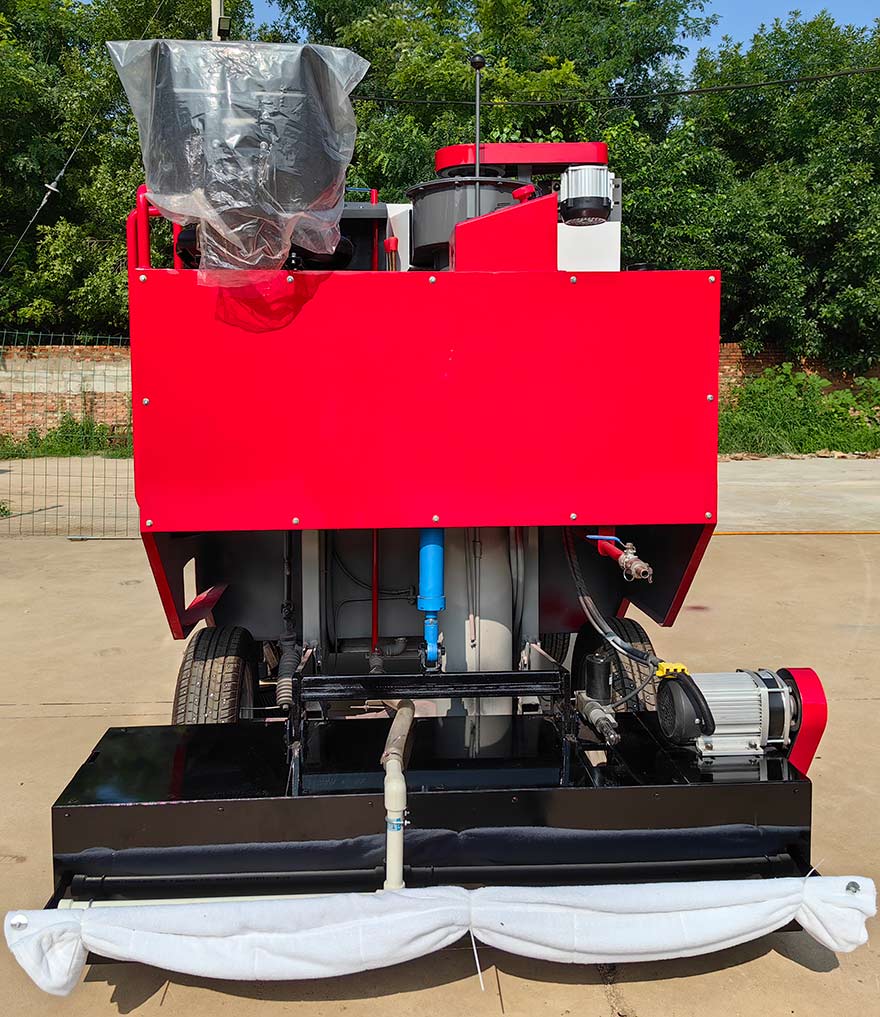

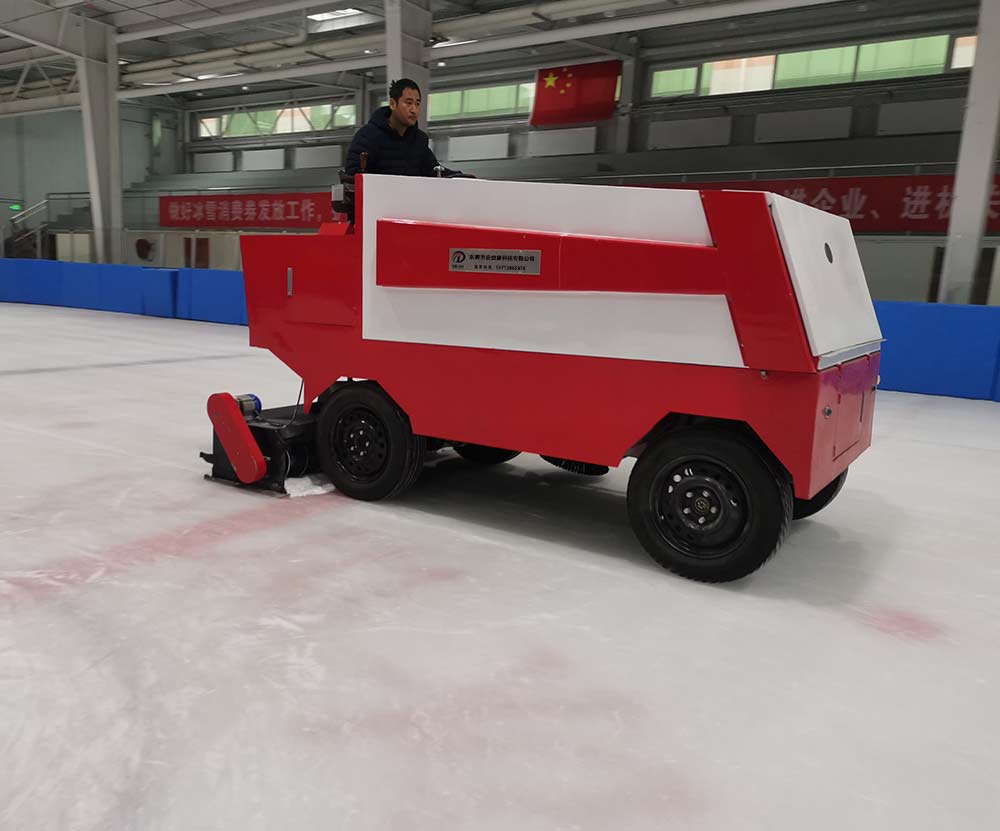

Ice resurfacer——ZKDZ-XXM
Ice resurfacer——ZKDZ-XXM
Applicable area：1400m²
Vehicle dimensions: 2950 × 1750 × 1900 mm
Fully functional — includes ice shaving, water spraying, and ice scrap collection.
Ice resurfacer——ZKDZ-XXM
Technical parameters and accessories
Order number | Technical parameters | ||
1 | Model | ZKDZ-XXM | |
2 | External dimension （L×W×H）mm | Snow box shut down Length：2950 (±100） Width： 1750 (±100） Hight： 1900 (±100） | Snow box open 3950 (±100） 1750 (±100） 3000 (±100） |
3 | Load free weight of the vehicle | 1480kg (±200 kg） | |
4 | Full load weight | 2040kg (±200 kg） | |
5 | The tank volume | 560L (±20L） | |
6 | Ice dust box capacity | 1.8m³ (±0.2 m³) | |
7 | Voltage/Total Power/battery capacity | 48v/5.0kw/240Ah | |
8 | Drive way | Four-wheel drive | |
9 | The entire width of the ice | 1520mm (±100 mm） | |
10 | Water ice width | 1600mm (±100 mm） | |
11 | Wheel base/wheelbase | 1100 mm/1500 (±100 mm） | |
12 | Operating speed | 10-20km/h | |
13 | Diameter of the Crosscut Dragon | 220mm | |
14 | Diameter of vertical gargoyles | 220mm | |
15 | Ice skates | 1650mm*127mm*12.7mm | |
16 | Tires | Non-slip studded tyres | |
17 | Water cloth | 2 pieces | |
18 | The toolkit | 1 set (including complete set of tools) | |
19 | Operating instruction | One electronic copy | |
