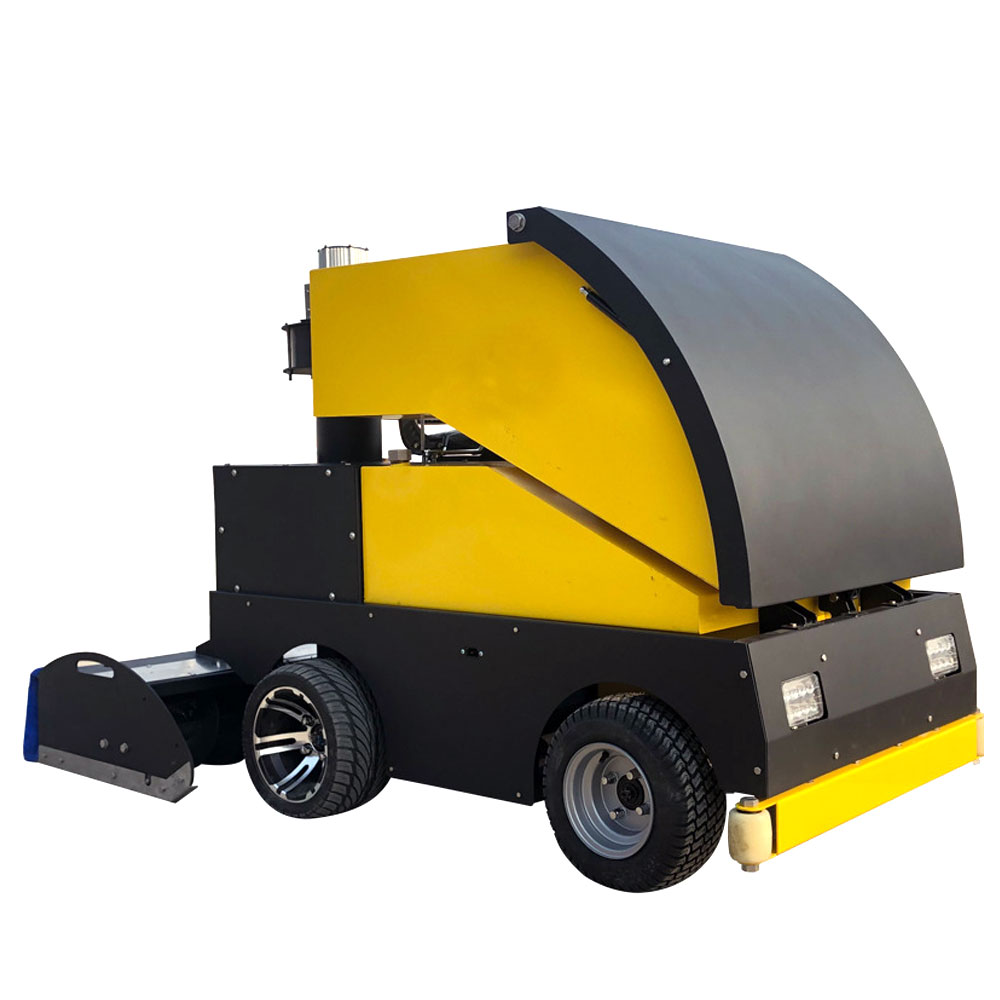

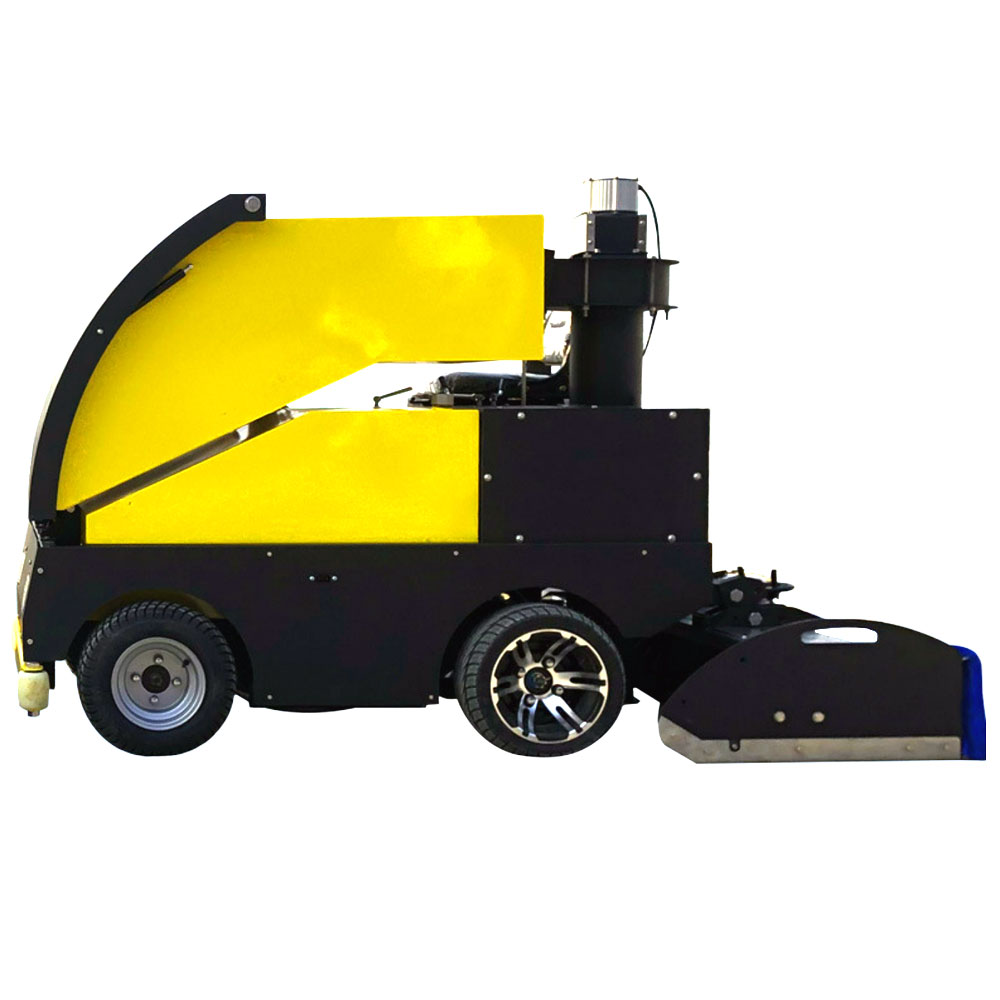

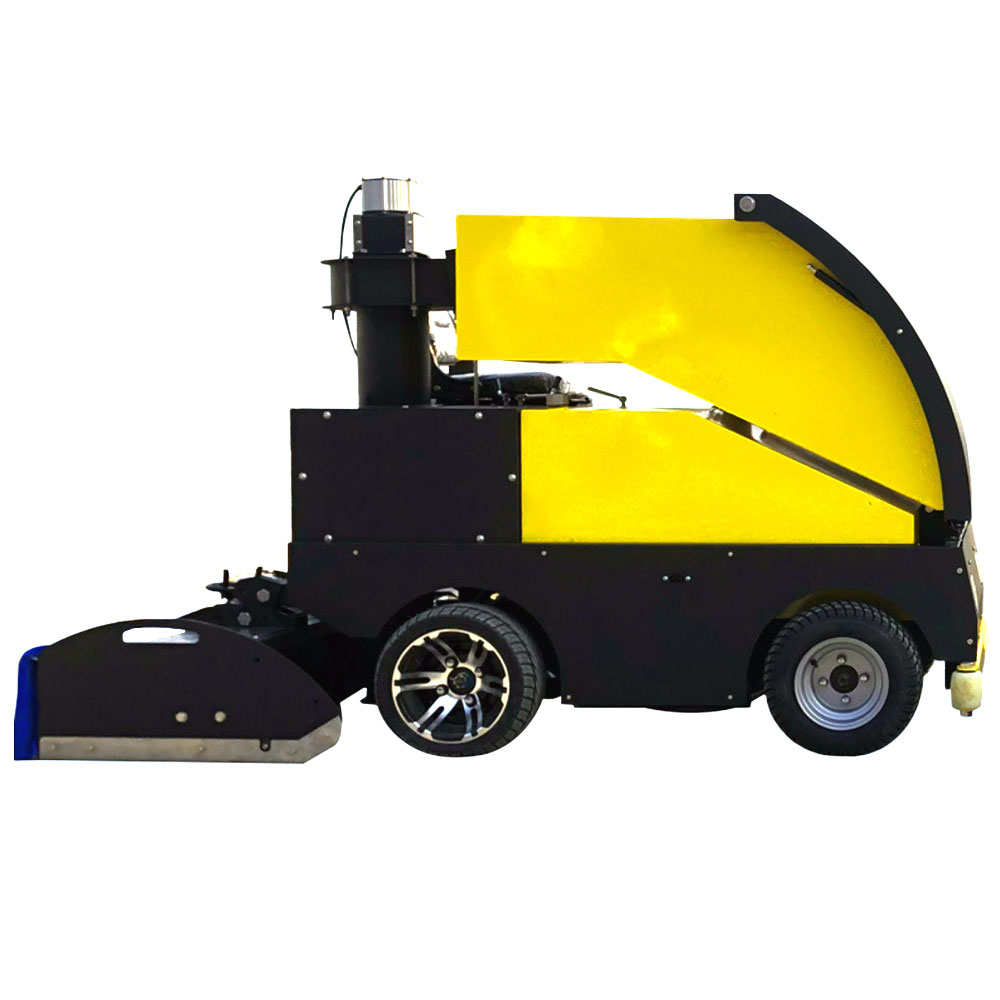

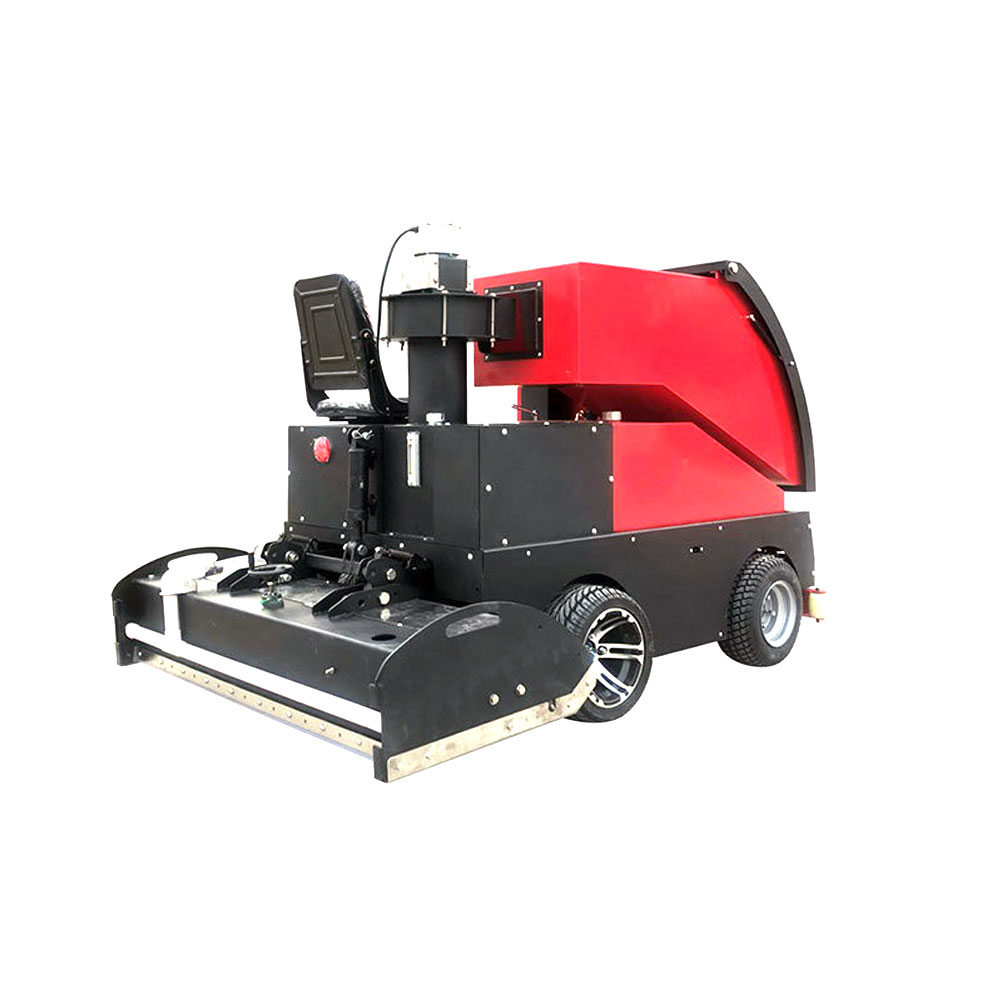

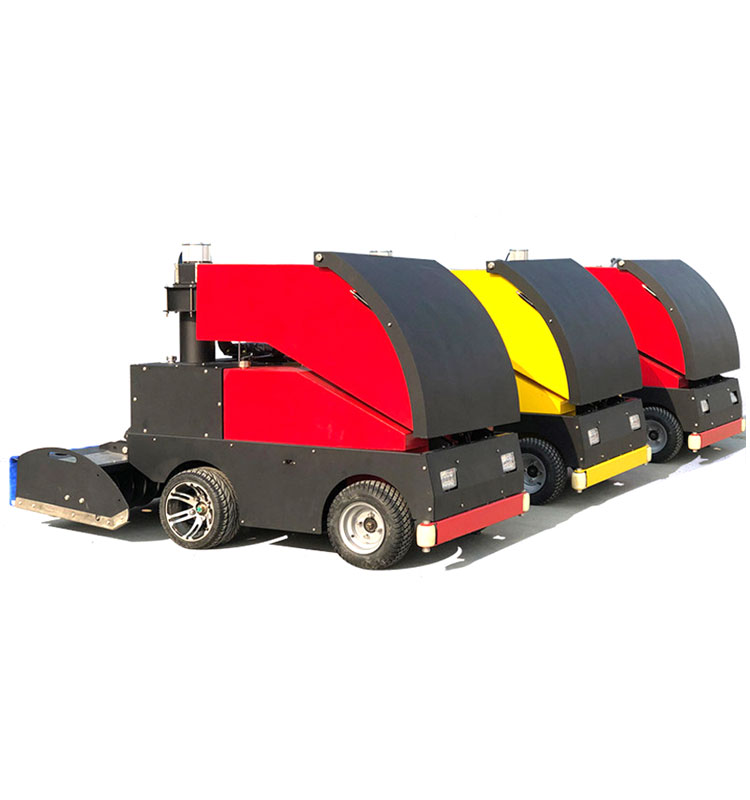

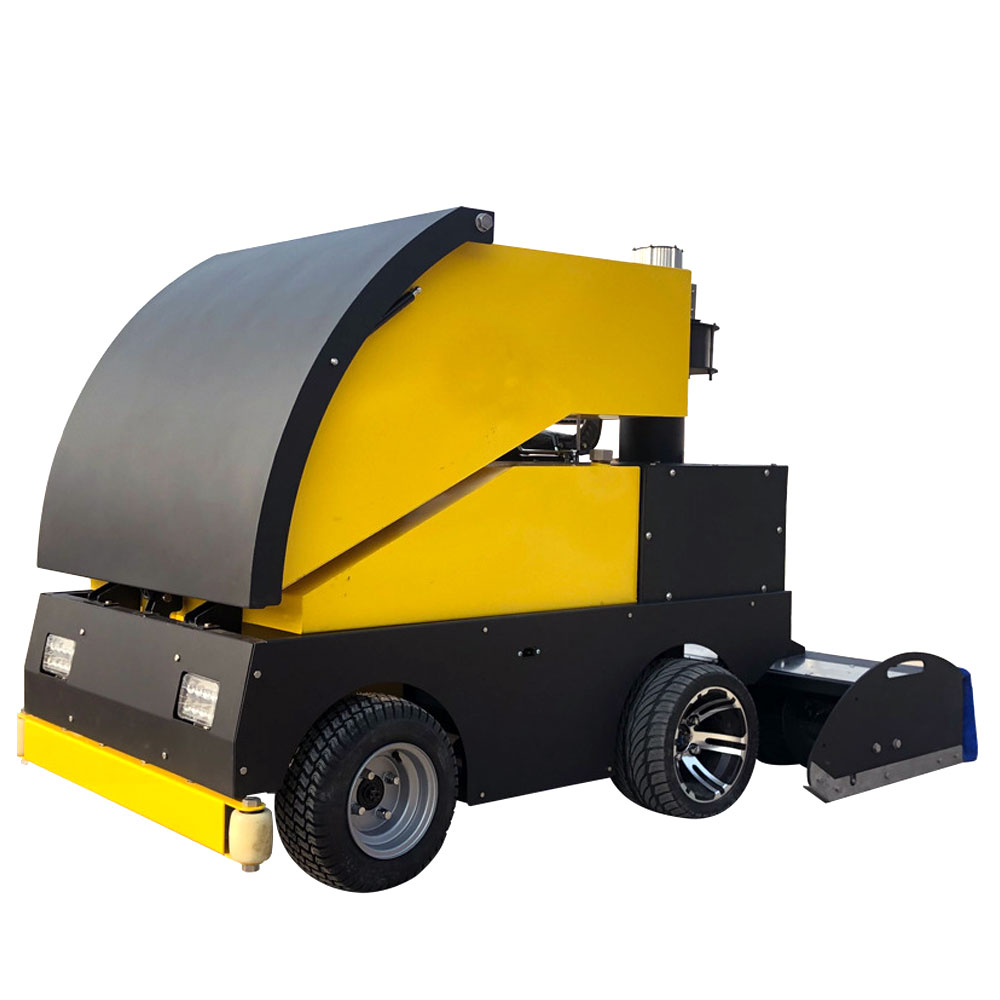

Ice resurfacer——DZC1200

DZC-1200 Ice Resurfacer Specifications

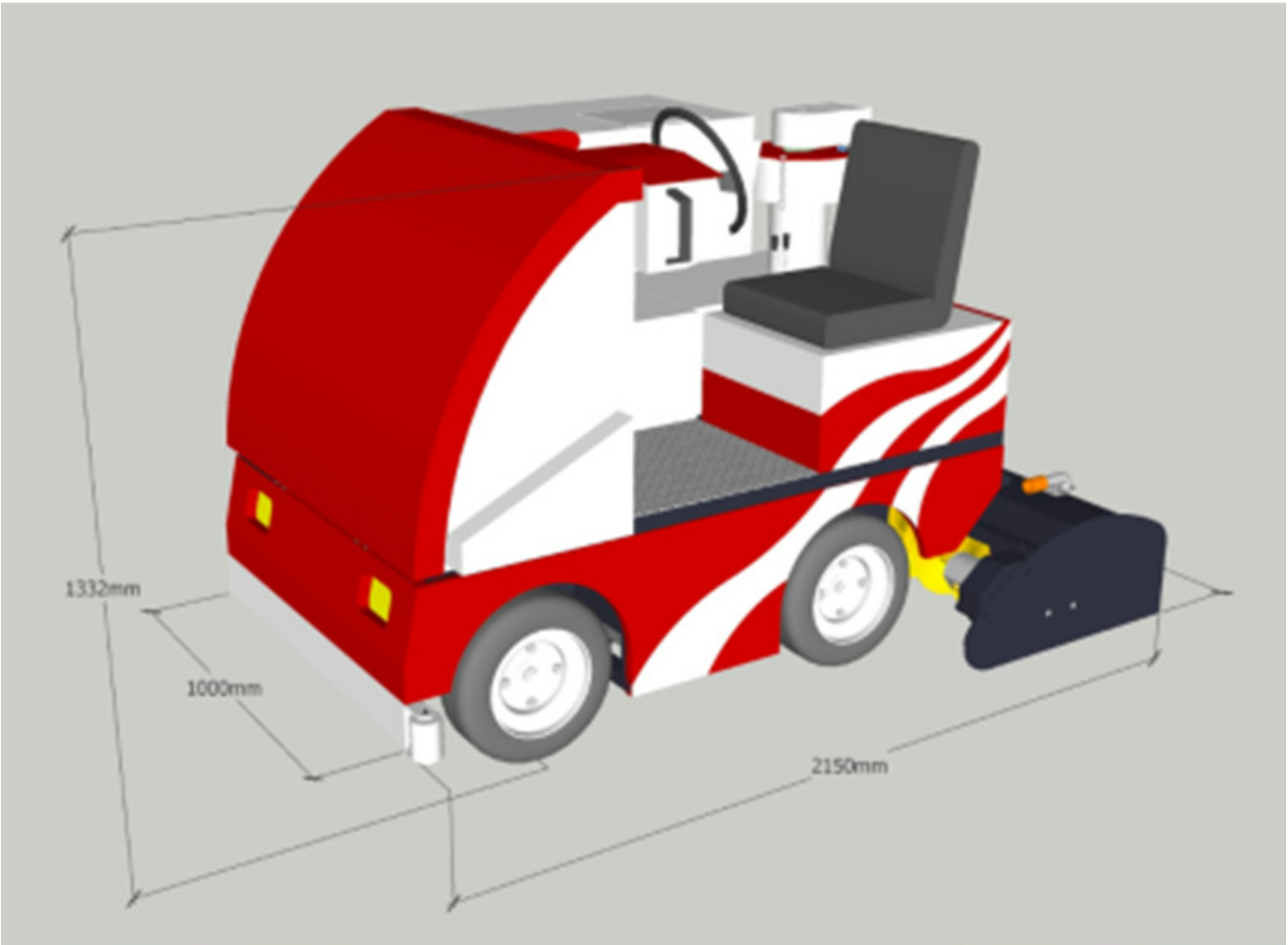

1. General Dimensions

• Length (Static): 2150 mm

• Width (Vehicle Body): 1000 mm

• Width (Blade Holder): 1400 mm

• Height (Overall): 1332 mm

2. Drive System

• Wheelbase: 1050 mm

• Track Width: 960 mm

• Tires:

• 4-hole aluminum alloy rims (diagonal hole spacing: 100 mm)

• Tire size: 165/70R13

• 9-layer steel-belted construction

• Embedded alloy snow studs

• Load capacity: 300 kg per wheel

• Axles:

• Front axle: Hydraulic push-rod linked steering system

• Rear axle: Integrated motor-driven differential

• Rear wheels: Hydraulic drum brakes

• No shock absorber system

3. Motion & Control

• Control Type: Electronic accelerator pedal

• Speed:

• Low-speed operation

• Maximum speed: 20 km/h

• Transmission: Electronically controlled forward/reverse gears

4. Weight

• Curb Weight: 760 kg

• Fully Loaded Weight: 970 kg

5. Water & Ice Management

• Ice Collection Bin Capacity: 300 liters

• Water Tank Capacity: 240 liters

6. Power System

• Battery:

• 48V maintenance-free battery (Tianneng brand)

• Configuration: 4 × 8V 52Ah

• Weight per battery: 15 kg

• Motor:

• High-power DC brushless motor

• Rated Power: 48V / 5.0 kW

7. Appearance & Build

• Headlights: Wide-voltage LED high/low beam headlights

• Body Construction:

• Heavy-duty steel plates

• Electrostatic powder coating finish

• Partial stainless steel components

8. Key Features

1. This machine integrates ice resurfacing, snow collection, and water application in one.

2. Fully electric drive system powered by eight 6V 60Ah water batteries, providing sufficient energy for both motor and hydraulic unit operation.

3. Dimensions: 2150 mm (L) × 1400 mm (W) × 1332 mm (H)
