Price: USD 0

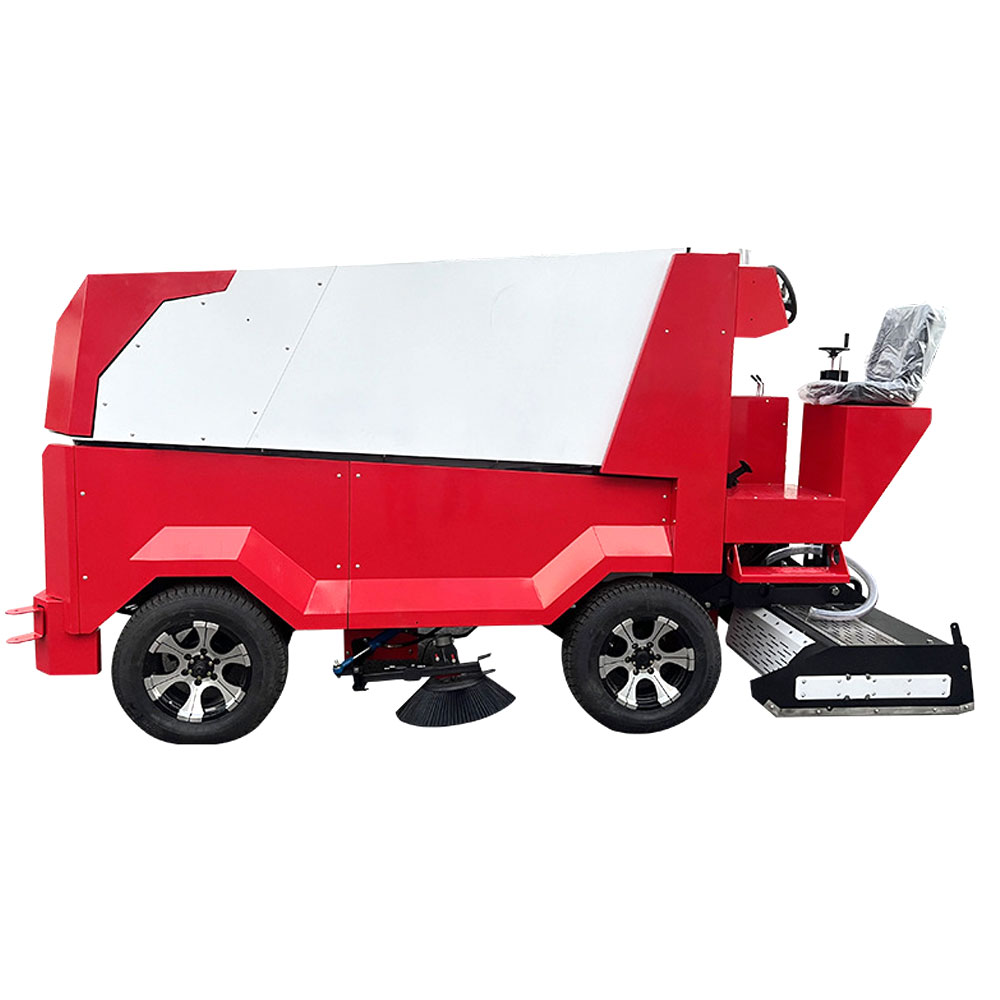

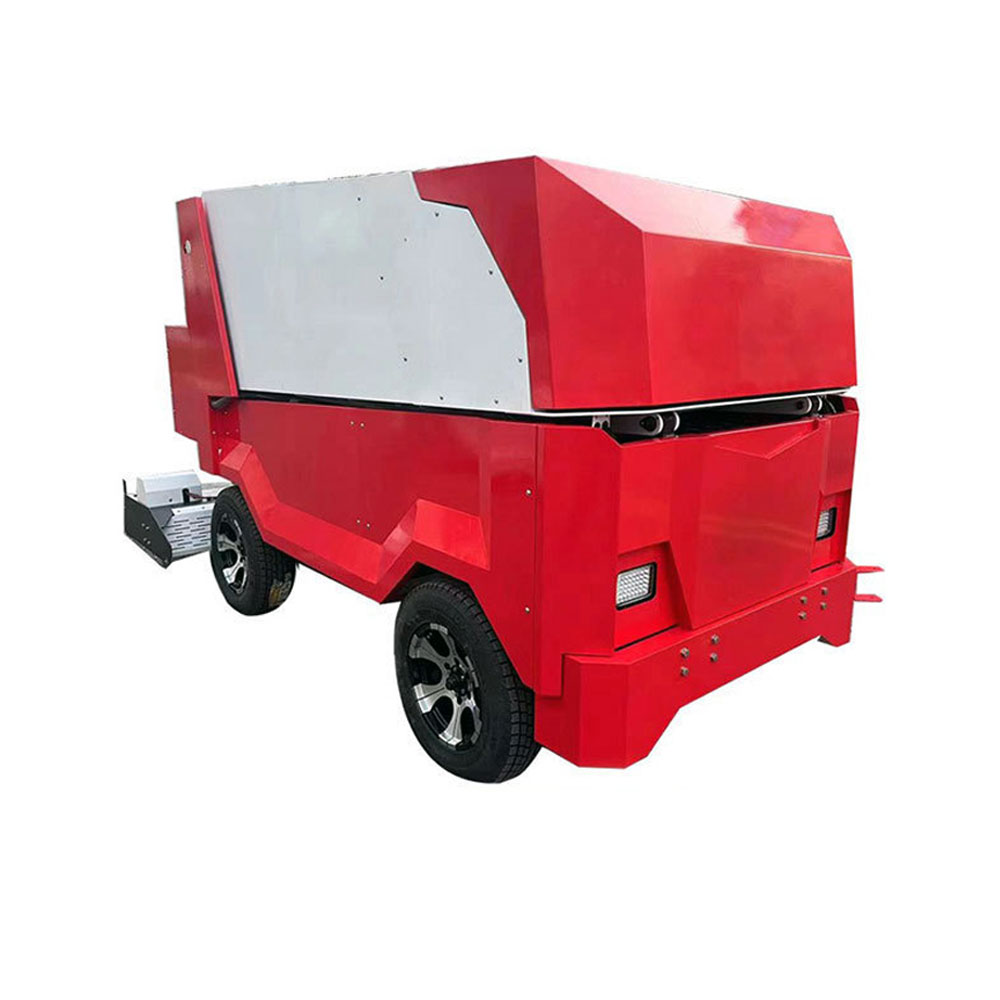

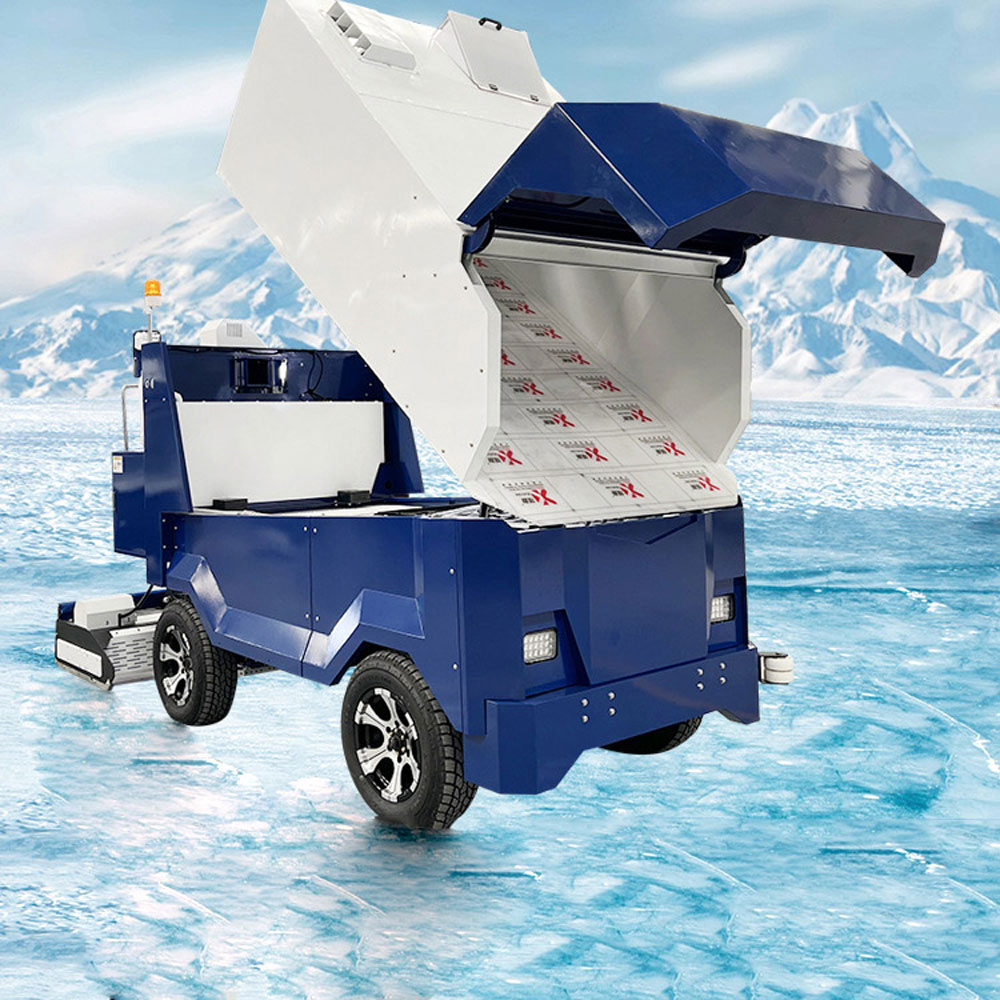

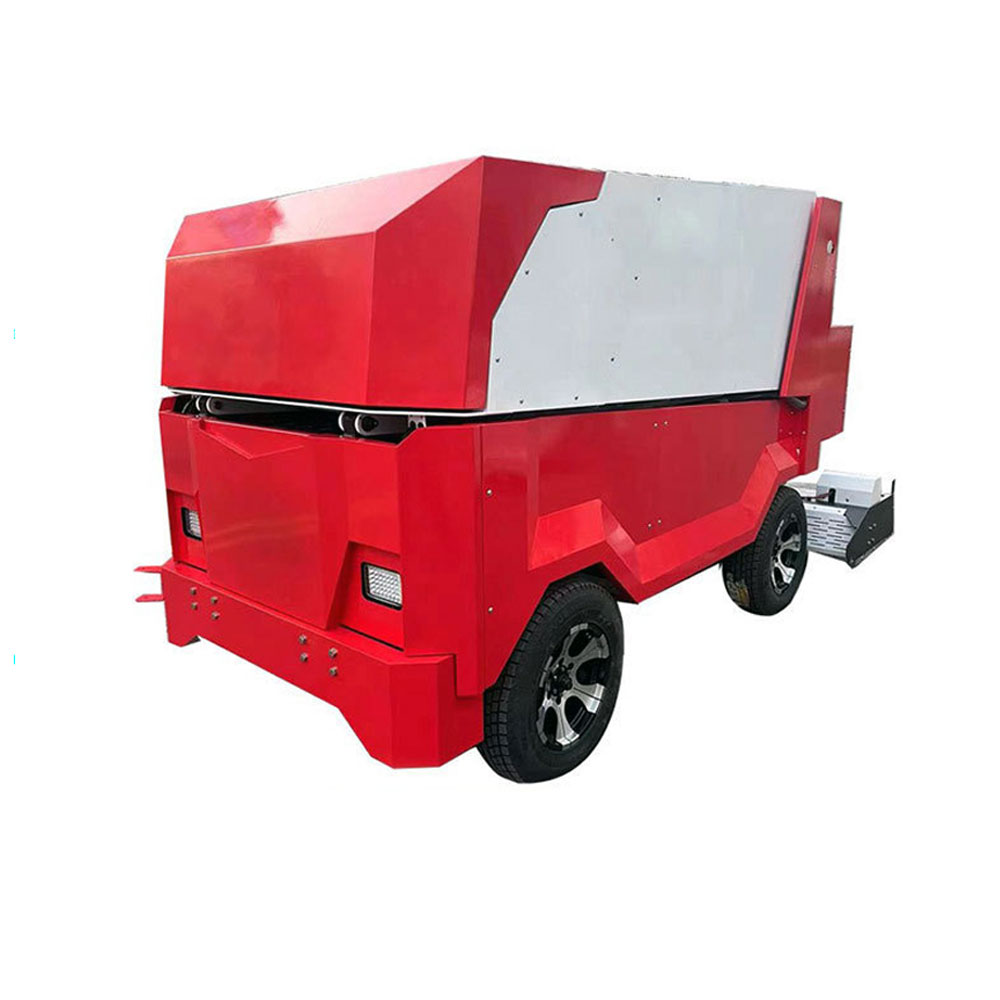

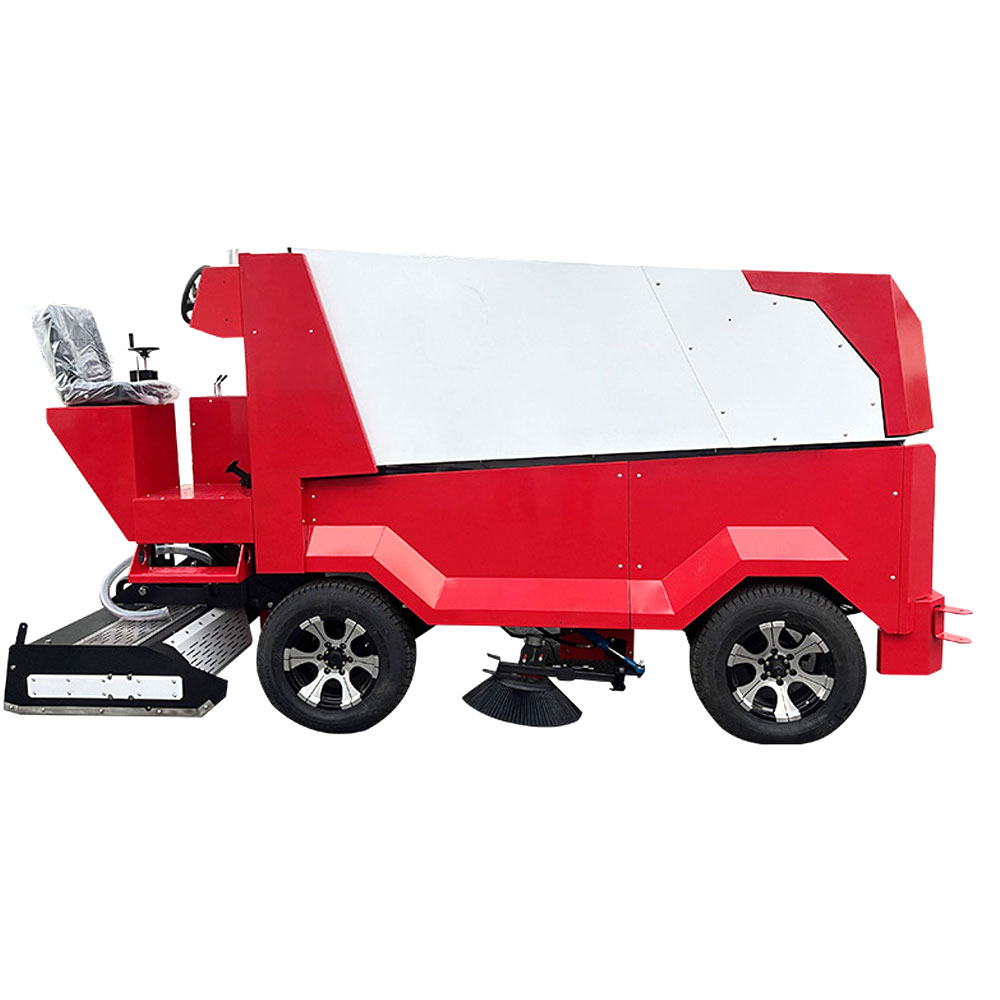

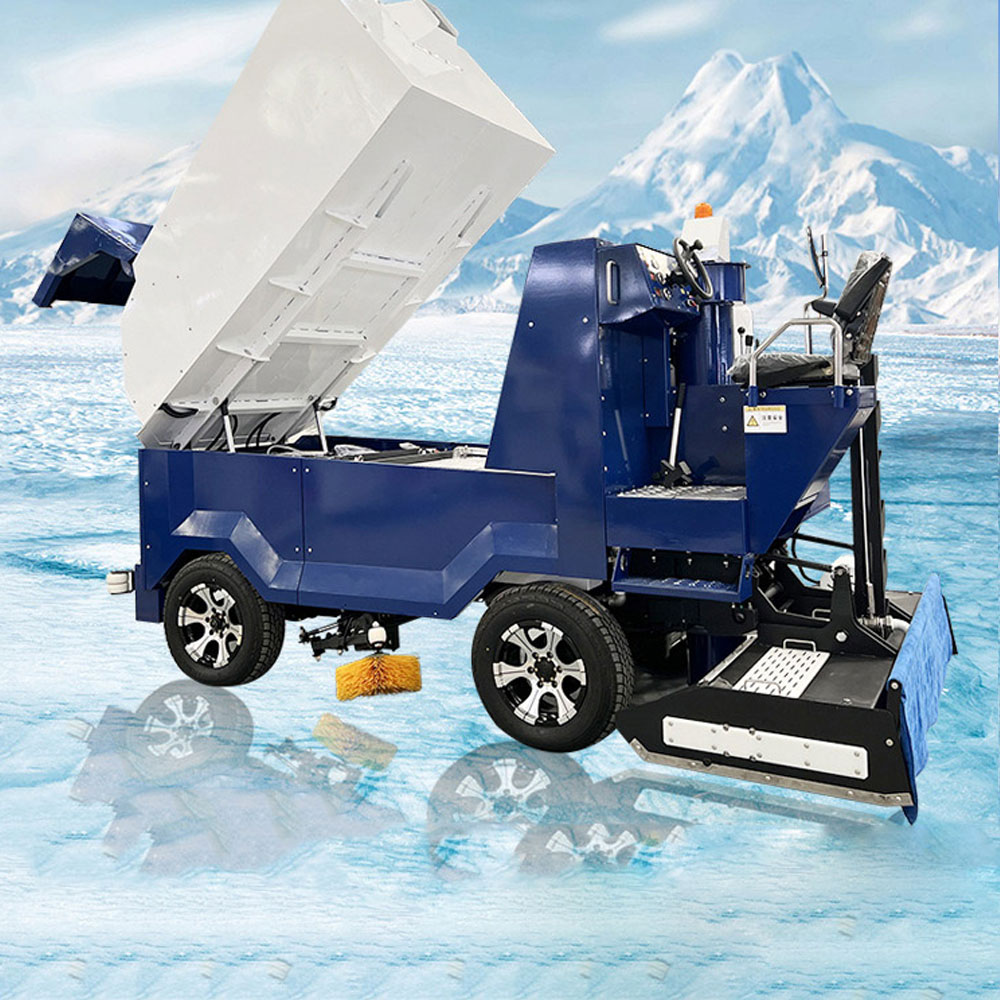

Ice resurfacer——RX4020
Applicable area：1800m²
Vehicle dimensions: 4020 × 2100 × 2220 mm
Fully functional — includes ice shaving, water spraying, and ice scrap collection.
| Technical parameters and accessories | |||
Order number | Technical parameters | ||
| 1 | M o d e l | RX4020 | |
2 | External dimension (L×W×H)mm | Snow box shut down Length:4020 (±100) Width: 2100(±100) Hight: 2220(±100) | Snow box open 4515(±100) 1950(±100) 3360(±100) |
| 3 | Load free weight of the vehicle | 3500 (±200 kg) | |
| 4 | Full load weight | 4285kg (±200 kg) | |
| 5 | The tank volume | 1100(±20L) | |
| 6 | Ice dust box capacity | 3.54m³(±0.2 m³) | |
| 7 | Drive way | Four-wheel drive | |
| 8 | Voltage/total power | 72V/15kw | |
| 9 | Accumulator capacity | 2v*600Ah*36 | |
| 10 | The entire width of the ice | 1950mm (±100 mm) | |
| 11 | Water ice width | 1950mm(±100mm) | |
| 12 | Wheel base/wheelbase | 1530mm/1950(±100 mm) | |
| 13 | Water ice area | 2900m² | |
| 14 | Operating speed | 15km/h | |
| 15 | Horizontal ground dragon | 1 set of | |
| 16 | Vertical ground dragon | 1 set of | |
| 17 | Side brush | 1 set of | |
| 18 | Ice machine | 1 set of | |
| 19 | Ice skates | 2 pieces | |
| 20 | Skate rack and ice pouring system | 1 set of | |
| 21 | Snow resistant tires | 4 sets of | |
| 22 | Clean towel | 2 pieces | |
| 23 | The toolkit | 1 set(including complete set of tools) | |
| 24 | Operating instruction | One electronic copy | |
