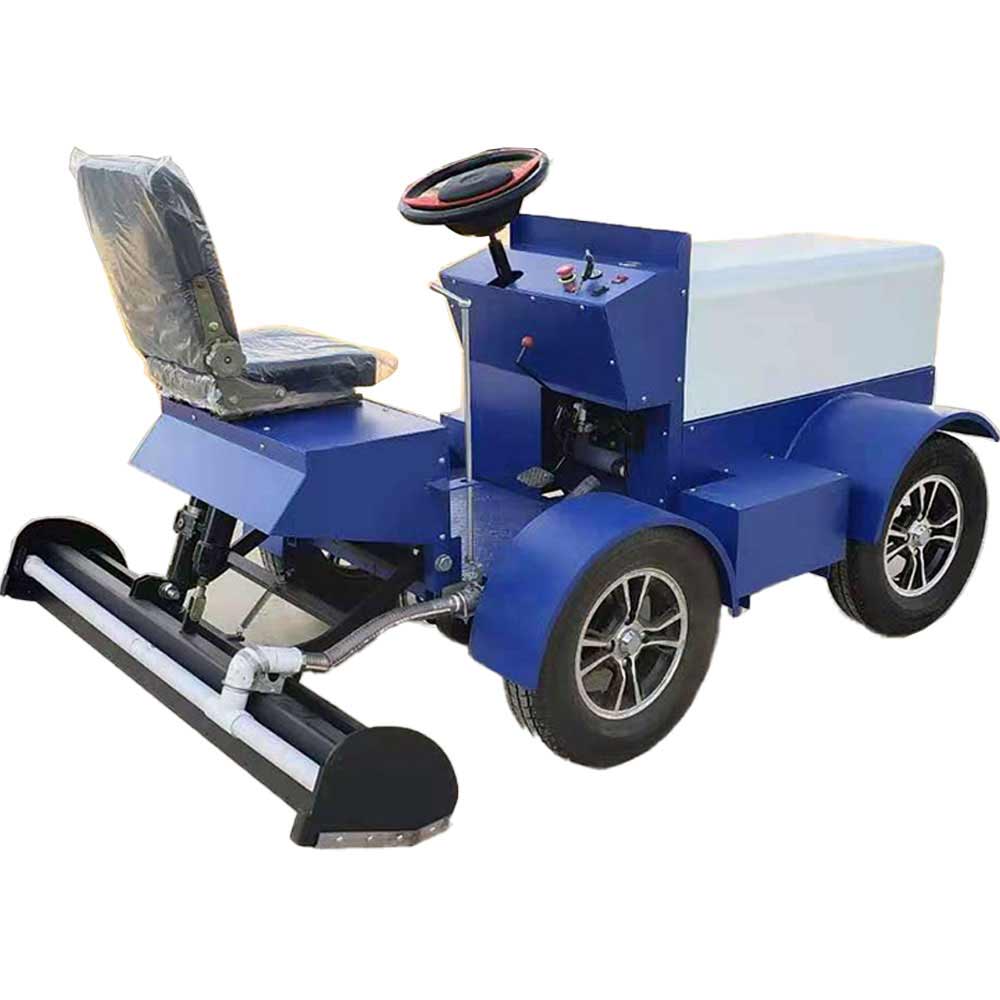

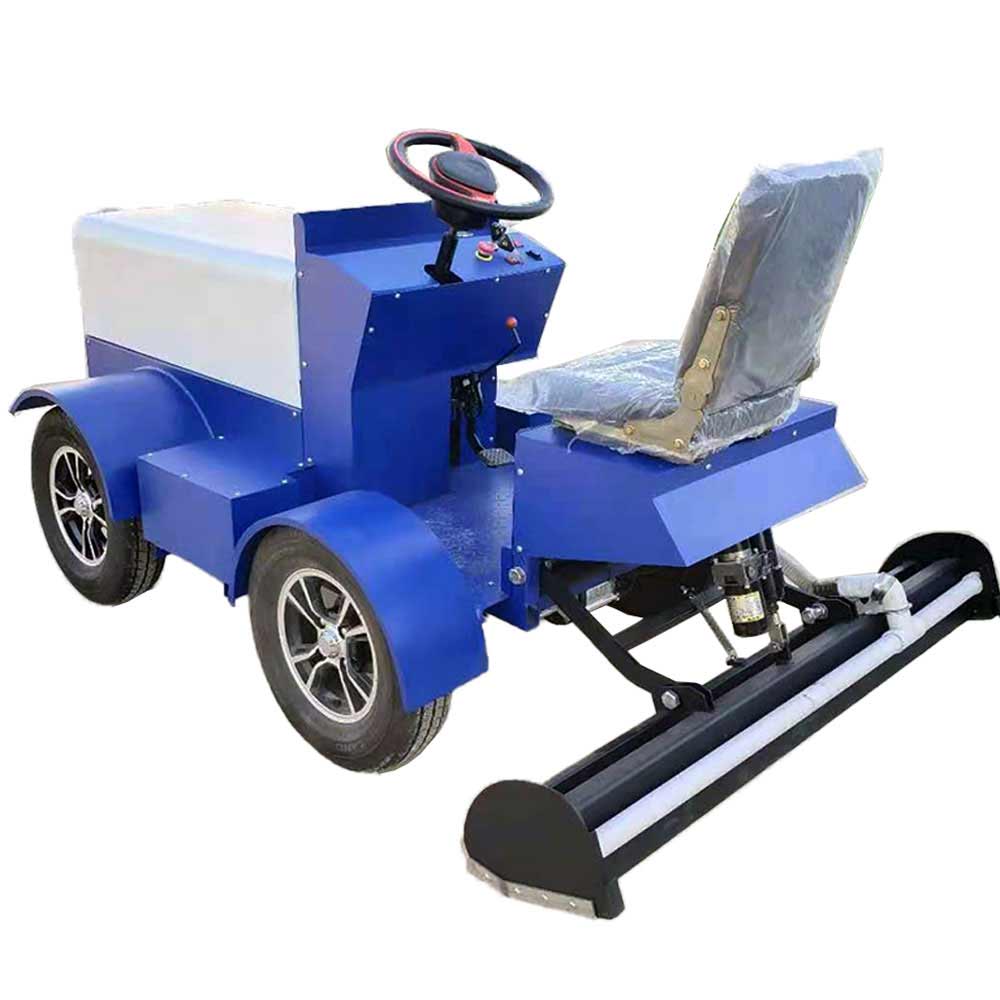

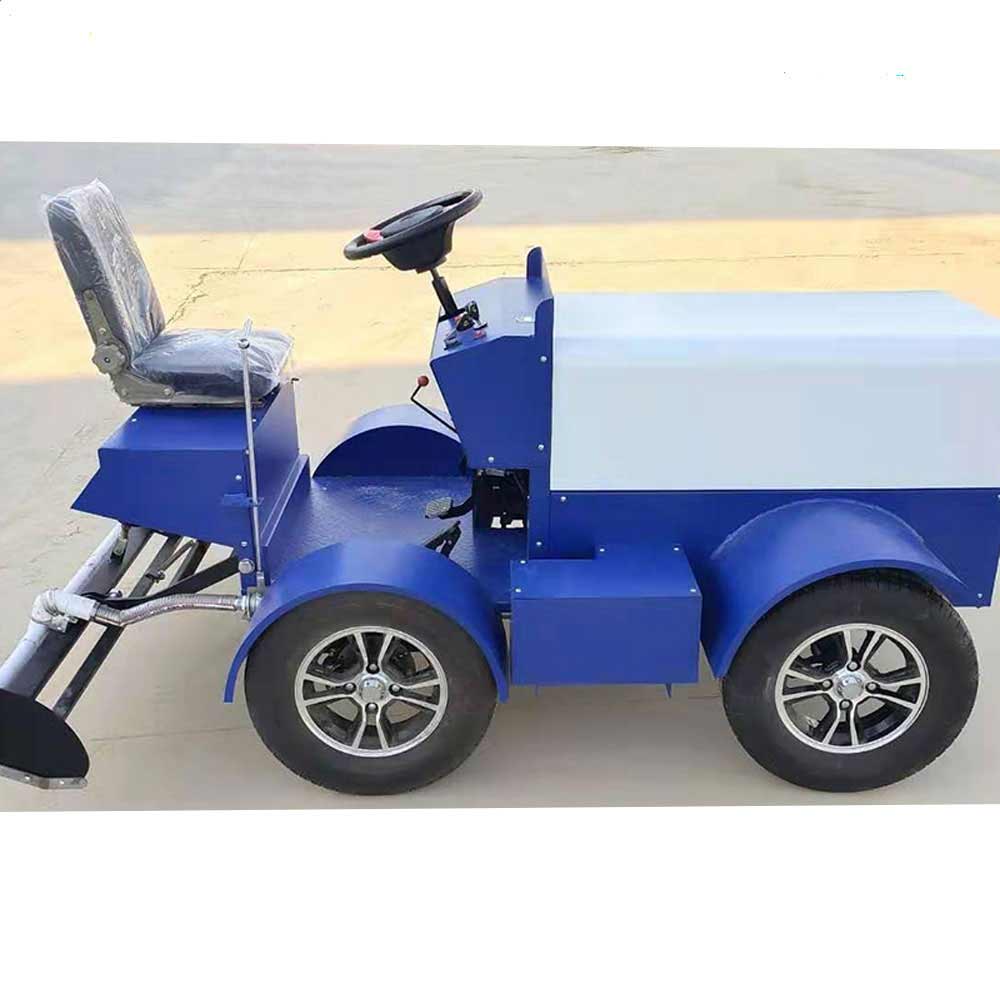

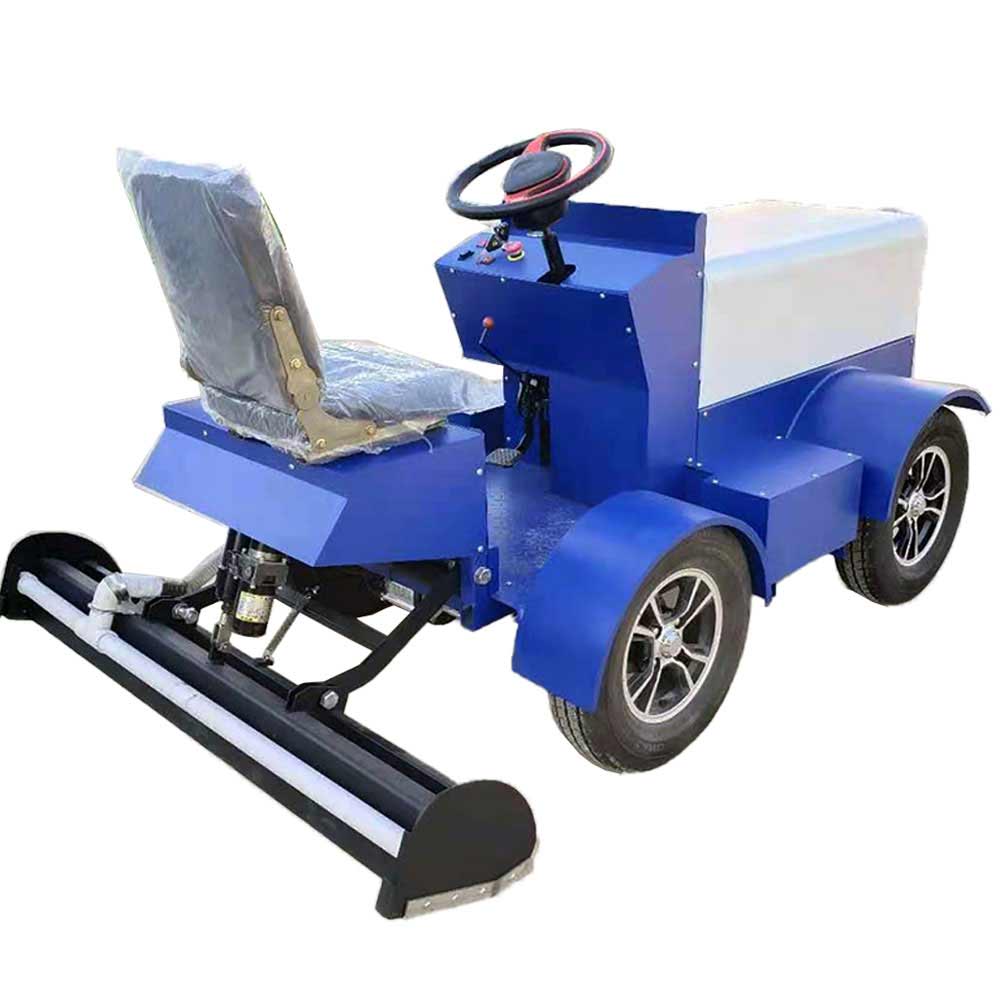

DZC-1000 Ice Resurfacer Specifications (Updated)

1. Gneral Dimensions

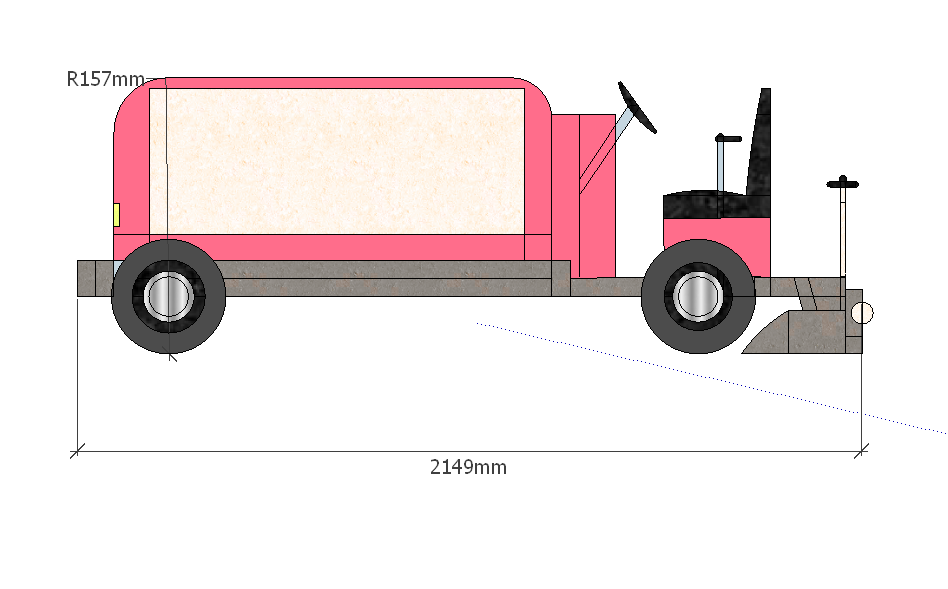

- Length (Static): 2149 mm
- Width (Vehicle Body): 1400 mm
- Height (Overall): 1200 mm

2. Drive System

- Wheelbase: 1050 mm
- Track Width: 960 mm
- Tires:
  - 4-hole aluminum alloy rims (diagonal hole spacing: 100 mm)
  - Tire size: 165/70R13
  - 9-layer steel-belted construction
  - Embedded alloy snow studs
  - Load capacity: 300 kg per wheel
- Axles:
  - Front axle: Hydraulic push-rod linked steering system
  - Rear axle: Integrated motor-driven differential with direct drive
  - Rear wheels: Hydraulic drum brakes
  - No shock absorber system

3. Motion & Control

- Control Type: Electronic accelerator pedal
- Speed:
  - Low-speed operation
  - Maximum speed: 20 km/h
- Transmission: Electronically controlled forward/reverse gears

4. Weight

- Curb Weight: 280 kg
- Fully Loaded Weight: 360 kg

5. Water & Ice Management

- Ice Collection Bin: None
- Water Tank Capacity: 200 liters

6. Power System

- Battery:
  - 48V maintenance-free battery (Tianneng brand)
  - 4 × 8V 52Ah (15 kg each)
- Motor:
  - High-power DC brushless motor
  - Rated Power: 48V / 3.0 kW

7. Appearance & Build

- Headlights: Wide-voltage LED high/low beam headlights
- Body Construction:
  - Heavy-duty steel plates with electrostatic powder coating
  - Partial stainless steel panels

8. Key Features

1. Ice resurfacing functionality integrated.
2. Fully electric drive powered by four 8V 52Ah batteries, supplying motor and hydraulic system.
3. Updated Dimensions: 2149 mm (L) × 1400 mm (W) × 1200 mm (H)
